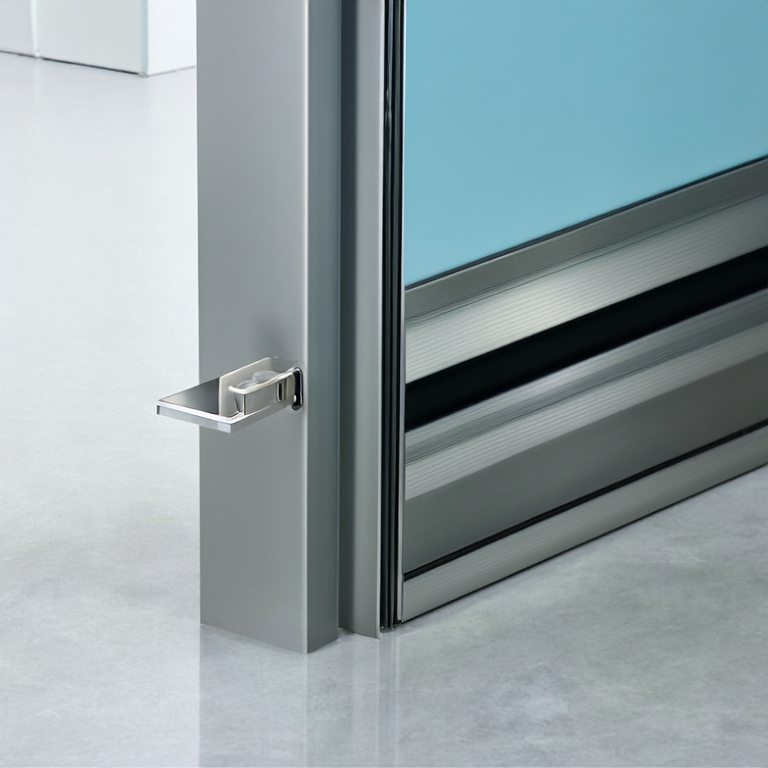

Cleanroom Door Installation Guide

Installing cleanroom doors and windows is essential for maintaining controlled environments in various industries, including pharmaceuticals and biotechnology. This guide is tailored for facility managers, construction professionals, and anyone responsible for cleanroom integrity. With an increasing focus on contamination control, having a thoroughly installed cleanroom door can significantly enhance air quality, thereby leading to a reduction in impurity levels by as much as 50%. This article addresses common installation issues and provides a comprehensive roadmap to ensure success in your cleanroom projects.

Basic Knowledge of Cleanroom Door Systems

Key Terminology

Understanding the terminology related to cleanroom doors is crucial. Common terms include:

• HEPA Filters: High-Efficiency Particulate Air filters that capture 99.97% of particles 0.3 microns or larger.
• Cleanroom Classifications: Defined by the number of particulate contamination in an environment, ranging from Class 1 (most stringent) to Class 100,000.
• Controlled Environments: Spaces maintained with regulated temperature, humidity, and particulate levels to protect sensitive processes.

Principles of Cleanroom Design

The primary principle behind cleanroom design is to minimize contamination. Cleanroom doors play a critical role in this process, serving as essential barriers to outside particulate matter. A well-installed cleanroom door system can mitigate air leakage rates, which should be maintained below 0.5% to ensure air quality and compliance with ISO standards.

In-Depth Guide to Cleanroom Door Installation

Step 1: Assessing the Environment

Before installation, evaluate the cleanroom's classification and requirements. This includes understanding the necessary air exchanges per hour, which can vary from 60 for Class 8 environments to over 200 for Class 1. This assessment will guide the type of door required.

Step 2: Selecting the Right Cleanroom Door

Choose from options like sliding doors, swing doors, or accordion doors based on space availability and cleanroom class. For example, sliding doors can minimize air turbulence, making them ideal for Class 1 and 2 environments. Pharma United offers several cleanroom-door solutions tailored for different classifications.

Step 3: Gather Necessary Tools

You'll need tools such as a spirit level, power drill, screwdriver, and appropriate fasteners recommended by door manufacturers. Utilizing a torque wrench to ensure the specified tension on screws ensures maximum seal integrity and avoids door damage.

Step 4: Preparation of the Installation Site

Ensure the installation area is clean, dry, and free of obstructions. Apply a cleanroom-approved sealant to the perimeter where the door will be mounted to enhance airtight sealing. This measure can reduce leakage rates to below 0.5%.

Step 5: Mounting the Cleanroom Door

Follow these steps for a successful mount:

1. Align the door frame with the opening, and use a spirit level to ensure it's horizontally level.
2. Secure the frame to the wall using the recommended fasteners, distributing the screws evenly.
3. Install the door by attaching the hinges and ensuring smooth operation.
4. Finally, apply the gaskets and sealants to ensure maximum containment.

Step 6: Post-Installation Testing

Conduct airflow tests to ensure that the cleanroom's air system meets required specifications. A properly functioning cleanroom door should maintain air pressure differentials across the threshold, usually between 0.05” to 0.1” water gauge, essential for its integrity.

Frequently Asked Questions (FAQ)

What are the primary benefits of cleanroom doors?

Cleanroom doors provide essential barriers to protect sensitive processes from contamination, thereby improving product quality and ensuring compliance with regulatory standards.

How can I ensure my cleanroom door installation is up to standard?

Working with experienced manufacturers like Pharma United ensures compliance with international standards, including ISO and FDA guidelines, and offers installation services.

Are maintenance and checks required after installation?

Regular maintenance checks are essential to ensure the cleanliness and functionality of the door system. It's advisable to perform inspections quarterly to prevent any potential issues that can lead to contamination.

Advanced Skills or Extended Reading

For advanced installation techniques and industry best practices, refer to sources like the ISO 14644 standard for cleanrooms, which offers comprehensive guidelines on installation and maintenance procedures.

Conclusion

In conclusion, installing cleanroom doors requires attention to detail and adherence to strict guidelines to maintain air quality standards. Companies like Pharma United provide a range of cleanroom door products and services to ensure you get the right solution for your facility. If you need assistance or have questions, don't hesitate to contact Pharma United for more tailored solutions.
